Shut-Off Devices

layer

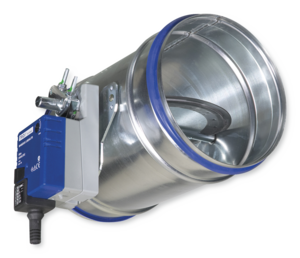

AK

Circular shut-off dampers for shutting off volume flows in ventilation ducts of air conditioning systems

  • Maintenance-free damper blade mechanism
  • Closed blade air leakage to EN 1751, up to class 4
  • Casing air leakage to EN 1751, class C

Optional equipment and accessories

  • Electric actuator
  • Spring return actuator
  • Pneumatic actuator
  • Auxiliary switch with adjustable switching points for capturing the end positions

read more

layer

AKK

Plastic circular shut-off dampers for shutting off aggressive media volume flows in air conditioning systems

  • Maintenance-free damper blade mechanism
  • Closed blade air leakage to EN 1751, class 3
  • Casing air leakage to EN 1751, class B

Optional equipment and accessories

  • Electric actuator
  • Spring return actuator
  • Pneumatic actuator
  • Auxiliary switch with adjustable switching points for capturing the end positions

read more

layer

AK-Ex

Circular shut-off dampers for shutting off ducts, approved and certified for potentially explosive atmospheres (ATEX)

  • ATEX-compliant construction and parts
  • Approved for all gases, mists and vapours in zones 1 and 2, with electric actuator additionally for dusts in zones 21 and 22
  • Suitable for supply air and extract air
  • Electric or pneumatic actuator
  • Any installation orientation
  • Closed blade air leakage to EN 1751, up to class 4
  • Casing air leakage to EN 1751, class C


Optional equipment and accessories

  • Spring return actuator
  • Auxiliary switch with adjustable switching points for capturing the end positions

read more
