Shut-Off dampers

layer

JZ

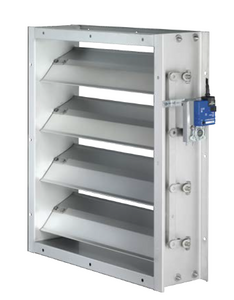

Rectangular multileaf dampers for volume flow and pressure control as well as for shutting off ducts and openings in walls and ceiling slabs

  • Maximum dimensions of steel and stainless steel variants: 2000 × 1995 mm; of aluminium variant: 1200 × 1050 mm
  • Casing air leakage to EN 1751, class C
  • Aerofoil parallel or opposed action blades
  • Steel and stainless steel variants: blades interconnected by external linkage (for parallel or opposed blade action)
  • Aluminium variant: blades interconnected by gears (for opposed action)
  • Installation with horizontal or vertical blades
  • Available in standard sizes and many intermediate sizes
  • Can be combined with external weather louvres


Optional equipment and accessories

  • Actuators: Open/Close actuators, modulating actuators
  • Explosion-proof construction with pneumatic actuator or spring return actuator (not for JZ-AL)
  • Powder-coated construction
  • Aluminium variant also as anodised construction

read more

layer

Type BDD

  • The damper casing and blades are made from 1.5mm thick galvanized steel sheet.
  • The blades are fitted with 12 mm diameter mild steel spindle in zinc plating.
  • The blade spindles are connected to the damper casing with bearing journals which have a maximum operating tamperature of 80 °C.
  • The damper has face linkage with parallel blade arrangement.
  • Counter-weight arm(s) is fitted to the side of the damper casing complete with adjustable weights, located outside of the air stream.
  • The blades are fitted with tip seals made of Silicon rubber.

read more

layer

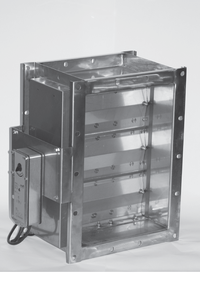

TROX Type ‘JFD’ Damper is a Multi-leaf Fire and Gas Damper, designed for marine and offshore applications. The damper is certified by Lloyd’s Register and ABS for the compliance with IMO Fire Test Procedures Code, Annex 1; Part 3. The damper is also certified by Lloyd’s Register for compliance with the essential Fire protection requirements of the EU Marine Equipment Directive (MED) 96/98/EC. The damper is certified for horizontal or vertical mounting in ‘A-0’ divisions, and ‘A-15’, ‘A-30’ and ‘A-60’ divisions when suitably insulated. The damper is also certified for use in Zone 1 and 2 hazardous areas and complies with EU Directive 94/9/EG (ATEX 95), Appendix 1 and is classified under equipment group II, category 2G. In accordance with EU Directive 99/92/EC (ATEX 137), the damper can be used in potentially explosive environment where gas Groups IIA, IIB and IIC, and flammable materials at temperature classes T1 to T6 are present.

The maximum recommended operating pressure for this damper is 3000 Pa.

read more

layer

NAK

Gas-tight shut-off dampers are designed to ensure the level of tightness required by KTA Guideline 3601 (German Nuclear Safety Standards Commission, KTA) and by DIN 25414 even when the power supply or compressed air supply fails.

  • Compact design and robust actuator mechanism allow for any installation orientation
  • Maximum air leakage rate is 0.0028 (l/s)/m² or 0.01 (m³/h)/m² at a differential pressure of 2000 Pa
  • Gas-tight closure, even when there is no power, due to special over centre locking mechanism
  • Variants with hand wheel, pneumatic actuator or electric actuator
  • Brass and stainless steel bearings
  • Powder-coated casing and blades
  • Maximum pressure loading of 5000 Pa, in closing direction
  • Available in standard sizes and many intermediate sizes


Optional equipment and accessories

  • Flange holes
  • Limit switch
  • Double acting pneumatic actuator, with optional solenoid valve
  • Electric actuator 3 × 230 V AC (400 V AC) or 230 V AC

read more
